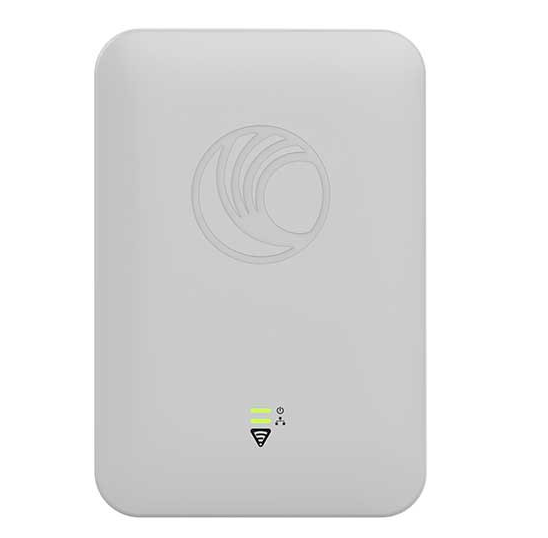

CnPilot E500

cnPilot E500 Specifications

Access Point Specifications

Frequency Bands

2.4 GHz: 2.4 – 2.4835 GHz
Channels 1 – 13 (ETSI/CE),
Channels 1 – 11 (US)
5 GHz: 5.15 – 5.85 GHz

SSID Security

WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open

Max SSIDs

16

Max Concurrent Clients

256

Max Range

Client: 213 m (700 Ft); Actual range will vary based on local RF conditions & client capability.
Mesh: 2.4 GHz: 3,000 m (9840 Ft.) 5 GHz: 1,500 m (4,900 Ft.)

Max Data Rates

1.01 Gbps

Ethernet Ports

Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T)

Antenna

Dual polarized. 2x2 MIMO. Integrated Sector antenna

Antenna gain

5 dBi

Power Supply

56V/30W Gigabit passive PoE injector

PoE Out

Aux port: capable of 802.3af Power out or Canopy power (for supported Cambium ePMP or PMP450 SMs)

Transmit Power

29dBm @ 2.4GHz
28dBm @ 5 GHz

Power Consumed

Typical: 8W Max: 12.95W (no auxiliary device connected)

Dimensions

30 x 20.4 x 6.5 cm (without bracket)

Weight

Without bracket: 881 g (0.88 Kg); with Bracket: 1,063 g (1.06 Kg)

Operating Temperature

-30°C ~ +60°C

Mounting Options

Pole mount bracket (included) or wall-mount (with included bracket or without)

LTE Co-Existence

Special filter for rejecting interference on 2.4 GHz from adjacent LTE bands 38, 40

Physical Security

Kensington Lock bracket

Visual Status

Two (2) multi-color LEDs indicating Access Point & cnMaestro connectivity status

Wi-Fi Features

Controller modes

• Autonomous Controller-less operations (E.g.: roaming)
• Cloud Managed
• On-premise virtualized controller

Secure WLAN

• WPA-TKIP, WPA2 AES, 802.1x
• 802.11w (Protected Management Frames)

Hotspot 2.0/Passpoint

Yes

Captive Portal

• cnMaestro Controller
• Stand-alone AP based
• Redirection to external RADIUS Server
• Server DNS logging

Authentication

• RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS
• MAC authentication (local database or External RADIUS server)

Accounting

Yes. Supports RADIUS based accounting to multiple AAAs

Scheduled SSID

Turn SSID ON/OFF on a daily/weekly/time of day basis

Guest Access

Yes. With Active Directory Integration

• Vouchers
• Rate limiting
• Splash page creation on cnMaestro

VLAN

• VLAN pooling, Dynamic VLAN assignment from RADIUS server.
• VLAN per SSID per user

Data Limiting

Dynamic rate limiting of client traffic per SSID

Subscriber QoS

WMM

Client Isolation

Yes

Controller-Less Fast Roaming

Yes. 802.11r, Opportunistic Key Caching supports Enhanced roaming Disconnect for sticky clients

Airtime Fairness

Yes

Meshing

Multi-hop meshing supported (3)

ACS: Automatic Channel Selection

autoTune: Autonomous dynamic off-channel scans w/o disconnecting clients. Periodic scans and scheduled scanning

Automatic Tx Power control

autoRF: Autonomous controller-less transmit power control

NAT

Yes

DHCP Server

Yes

Firewall

Yes. NAT logging

ACL, DNS-ACL

Yes. L2, L3 or DNS based access control

Band Steering Band Balancing

Yes

Airtime Fairness

Yes

Tunneling

• L2TP
• L2oGRE
• PPPoE

Tools

• Packet capture
• IP connectivity
• Wi-Fi analyzer
• Sniffer
• Auto logging
• Open source ZapD compliant performance test tool

Services

• NTP server config
• Syslog servers
• SNMP traps support
• DNS proxy
• cnPilot’s dependent resource state awareness feature (ADRES) turns SSID ON/OFF based on underlying resource connectivity state

APIs

Presence Locationing API

Certifications

FCC, ETSI, CE
EN 60601-1-2 (Medical EMC)
UL2043 Plenum rated

cnMaestro Wi-Fi Controller

Common Framework

Single-pane-of-glass common manager for Cambium’s cnPilot WiFi, ePMP and PMP wireless backhaul products

On-Boarding

Secure zero touch fast on-boarding

Provisioning

Easy zero touch virtual network provisioning
Provision before install (pre-provision)

Device Inventory

Inventory tracking

Trouble Shooting

ezDetect: Advanced end to end troubleshooting of WiFi Access Point and Client devices on one single screen. Extends to Wireless backhaul (PTP), Wi-Fi Hotspot & Clients . Includes Packet capture and Wireless Analyzer functions

Intuitive Views

Map location
Hierarchical Dashboard views

Client Insight

Client history with client manufacturer view

Monitoring & Alarms

Alarms and events management – Critical/Major/Minor
Key statistics graphs and sticky alarm summary display

Configuration

GUI based configuration or template based configuration options

Software Upgrade

Bulk upgrade with ability to upgrade multiple WiFi APs

Multiple Admins

Multiple admin provisioning per account

Guest Portal (ezCheck In)

Create free or paid guest sessions – Limit by Time, Rate and Bytes. Includes portal customization and built-in social login
