CnPilot E700

Thương hiệu: Cambium Networks

Loại: WiFi Cambium OutDoor

Giá: Liên hệ0₫ (chưa bao gồm VAT)

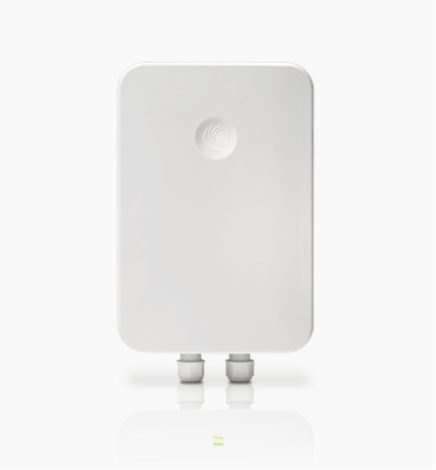

Cambium Networks cnPilot E700 Enterprise Outdoor Gigabit IP67, 802.11ac wave 2, 8 dBi Outdoor Access Point

CnPilot E700

2G Ports

2x2 (2.4 GHz)

4x4 (5 GHz)

802.11ac Wave 2

Free Could Manager

3 Years Warranty

Văn Phòng Công Ty

HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM

0907771575

(Xem bản đồ)

HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM

0987229729

(Xem bản đồ)

VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội

0987229729

(Xem bản đồ)

MIỄN PHÍ VẬN CHUYỂN

THANH TOÁN ĐẢM BẢO

HỖ TRỢ 24/7

HOÀN TRẢ MIỄN PHÍ

Overview

cnPilot e700 Enterprise Outdoor APs feature Gigabit throughput, 802.11ac Wave 2 standard with beam forming for superior outdoor Wi-Fi for enterprise campus, hospitality, higher education and public Wi-Fi applications.

Designed for the outdoors

802.11ac, 256 users, 16 SSIDs
Omni coverage
UV rated IP-67 enclosure
Max Operating Temp range: -40°C ~ +65°C
Operating humidity : 10% to 95%
Electrical heater for cold start
Ruggedized - ESD protection, Industrial grade components
Packaged with wall mount brackets
Special LTE coexistence filters
315 x 215 x 66 mm | 3.174 lbs (1700 gms)

cnMaestro - WiFi Controller

Guest Access: Custom Splash pages, Vouchers, Social login
Zero-touch Provisioning
Inventory tracking
Map location
Monitoring: key Stats, Alarms
Mass (bulk) upgrade
Integrated troubleshooting: WiFi APs, Clients & Cambium SMs
Available in Cloud or as On-premises (NOC) Virtual controller

e700 diagram

Specifications:

cnPilot E700 Specifications
Access Point Specifications
Frequency Bands	2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE) Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz
SSID Security	WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open
Max SSIDs	16
Max Concurrent Clients	512
Max Data Rates	2.4GHz: 400Mbps, 5GHz: 1733Mbps
Ethernet Ports	Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T)
Antenna	Integrated Omni
Antenna gain	8 dBi (2.4 GHz and 5 GHz)
Power Consumed	Typical 18W. Max 24.6W
Dimensions	315 x 215 x 66 mm (without bracket)
Weight	3.174 lbs (1700 gms) without bracket
Wi-Fi Features
Controller modes	Autonomous Controller-less operations (E.g.: roaming) Cloud Managed On-premise virtualized controller
Secure WLAN	WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames)
Hotspot 2.0/Passpoint	Passpoint supported
Captive Portal	cnMaestro Controller Stand-alone AP based Redirection to external RADIUS Server Server DNS logging
Authentication	RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS MAC authentication (local database or External RADIUS server)
Scheduled SSID	Turn SSID ON/OFF on a daily/weekly/time of day basis
Guest Access	Yes. With Active Directory Integration Vouchers Rate limiting Splash page creation on cnMaestro
cnMaestro Wi-Fi Controller
Common Manager	Single pane of glass: Controller for Wi-Fi and network manager for ePMP and PMP wireless backhaul products
On-Boarding	Secure zero touch fast on-boarding
Provisioning	Easy zero touch virtual network provisioning Provision before install (pre-provision)
Device Inventory	Inventory tracking
Trouble Shooting	ezDetect: Advanced end to end troubleshooting of WiFi Access Point and Client devices on one single screen. Extends to Wireless backhaul (PTP), Wi-Fi Hotspot & Clients . Includes Packet capture and Wireless Analyzer functions
Configuration	GUI based configuration or template based configuration options
