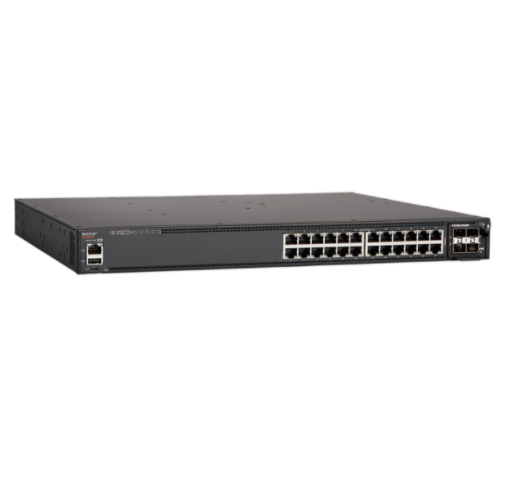

ICX7450-24

The RUCKUS ICX 7450 delivers unprecedented scale-out density with enterprise-class availability. With SDN support, a service module for IPsec VPN, and 40 GbE ports for uplinks all in a stackable design, these switches enable services to be added anywhere in the network.

The ICX 7450 is an ideal network solution for campus networks requiring 1 GbE access or small aggregation deployments with upgradeable 1GbE, 10 GbE or 40 GbE uplink modules. The switch also makes a suitable data center Top-of-Rack (ToR) solution, providing a ToR access-layer that can be upgraded to run on 10GbE/40GbE in the future with minimum costs and changes to cabling.

The modular design of the switch enables deployment of additional services such as high-performance IPsec encryption to meet increasing compliance and data security requirements.

• Up to 3 uplink modules with 4 x 1 GbE, 4 x 10 GbE, or 1 x 40 GbE ports
• 40 GbE standards-based stacking links – no proprietary cables needed
• PoE/PoE+/PoH (95W) to power video surveillance, VDI terminals, and HD displays
• Expansion slots accept modules with different uplink speeds and services
• Site-to-site IPsec VPN service module eliminates dedicated encryption devices
• Programmable hardware technology, enabling more features to be added to IPsec VPN deployments
• Suite B algorithms and support for 128-bit and 256-bit AES
• 10 Gbps throughput per service module
• Up to 12 switches per stack
• Up to 10km between stacked switches
• Stacking connectivity through open standard SFP+ or QSFP+ ports – no special cables needed
• Stack level ISSU for continuous operations
• Works seamlessly with RUCKUS Wi-Fi access points
• RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management

Specifications

General Specifications
