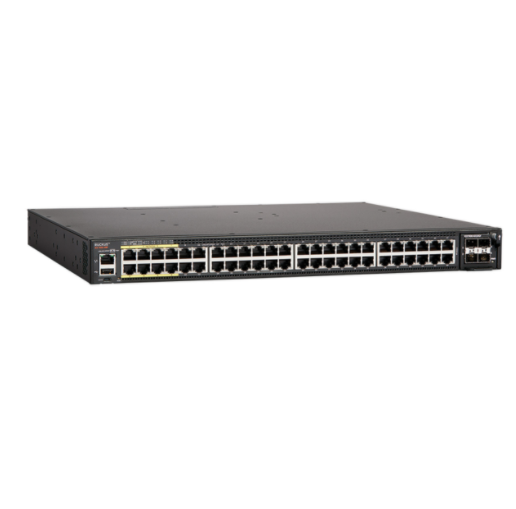

ICX7450-48P

Thương hiệu: Ruckus Wireless
Loại: Ruckus ICX7450
Giá: (chưa bao gồm VAT)
Giá so sánh: 150,685,000₫

48-port 1 GbE switch PoE+, 3 modular slots for optional uplinks/stacking. Power supply, fan & modules need to be ordered separately

ICX 7450
Số lượng

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

The RUCKUS ICX 7450 delivers unprecedented scale-out density with enterprise-class availability. With SDN support, a service module for IPsec VPN, and 40 GbE ports for uplinks all in a stackable design, these switches enable services to be added anywhere in the network.

The ICX 7450 is an ideal network solution for campus networks requiring 1 GbE access or small aggregation deployments with upgradeable 1GbE, 10 GbE or 40 GbE uplink modules. The switch also makes a suitable data center Top-of-Rack (ToR) solution, providing a ToR access-layer that can be upgraded to run on 10GbE/40GbE in the future with minimum costs and changes to cabling.

The modular design of the switch enables deployment of additional services such as high-performance IPsec encryption to meet increasing compliance and data security requirements.

  • Up to 3 uplink modules with 4 x 1 GbE, 4 x 10 GbE, or 1 x 40 GbE ports
  • 40 GbE standards-based stacking links – no proprietary cables needed
  • PoE/PoE+/PoH (95W) to power video surveillance, VDI terminals, and HD displays
  • Expansion slots accept modules with different uplink speeds and services
  • Site-to-site IPsec VPN service module eliminates dedicated encryption devices
  • Programmable hardware technology, enabling more features to be added to IPsec VPN deployments
  • Suite B algorithms and support for 128-bit and 256-bit AES
  • 10 Gbps throughput per service module
  • Up to 12 switches per stack
  • Up to 10km between stacked switches
  • Stacking connectivity through open standard SFP+ or QSFP+ ports – no special cables needed
  • Stack level ISSU for continuous operations
  • Works seamlessly with RUCKUS Wi-Fi access points
  • RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management

Specifications

General Specifications

Switching Capacity, maximum336 Gb/s
1 GbE RJ45 Ports, quantity, maximum48
1 GbE SFP Ports, quantity, maximum4
10 GbE SFP+ Ports, quantity, maximum12
10 GbE RJ45 Ports, quantity, maximum12
40 GbE QSFP Ports, quantity, maximum3
PoE Power Budget, maximum1500 W
Switches per Stack, maximum12
Aggregate Stack Bandwidth, maximum960 Gb/s
PoE/PoE+Yes
StackingYes
sFlowYes
Layer 3 (STATIC, RIP, OSPF)Yes
OpenFlow with Hybrid Port ModeYes
Campus Fabric TechnologyYes
Redundant Power OptionYes
Hot Swap Internal Power Supplies & FansYes
802.3bt2 (90 W PoE Power per Port)Yes
VRFYes
EEE (Energy Efficient Ethernet)Yes
IPsec VPN, with service moduleYes
MACsecYes
BGPYes
Reversible Airflow OptionYes
VxLANNo
Multi Chassis Trunking (MCT)No
