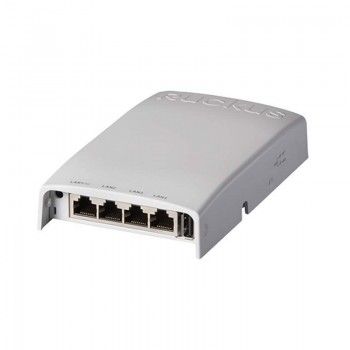

Zone Flex H510 802.11ac indoor wall plug AP, support 2.4GHz and 5GHz dual frequency, built-in BeamFlex + smart antenna, support MU-MIMO multi-user MIMO. 1x10/100/1000Mbps+4*10/100Mbps Ethernet port, POE power input, 2*2:2, up to 867Mbps+300Mbps, one Ethernet POE interface output. One USB port. Does not include power adapter
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Features and Benefits
In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices—IPTV set-top boxes, IP phones, networked minibars, and more—while delivering a great wireless experience.
The RUCKUS H510 wall-mounted access point and switch makes it easy to meet the most demanding in-room connectivity requirements without breaking the bank. It features patented RUCKUS technologies to deliver the industry’s highest-performing Wi-Fi, combined with four-ports of Gigabit Ethernet—all in a sleek, low-profile design that can be discretely installed over standard electrical outlets.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
Specifications
General Specifications
| Antenna Gain | Up to 1 dBi |
| Antenna Patterns, per band | 4 |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 100 |
| Controller Support | Cloud Wi-Fi | SmartZone | Standalone | Unleashed | ZoneDirector |
| Ethernet Ports | 5 x 1GbE |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 300 Mb/s |
| PHY Rate at 5 GHz, maximum | 867 Mb/s |
| Radio Chains:Streams | 2x2:2 |
| Rx Sensitivity at 2.4 GHz | -99 dBm |
| Rx Sensitivity at 5 GHz | -96 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Hospitality |
| Venue Sub-Type | Guest Rooms | Residence Hall |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2 |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11n |
| Wi-Fi Interface Standard at 5 GHz | 802.11ac |
Environmental Specifications
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Specifications:
| ||||
|---|---|---|---|---|
|  |  |  |  |
Feature/Description | 802.11ac Wave 2 dual-concurrent wall switch with five GbE ports and BeamFlex+ | 802.11ac Wave 2 dual-concurrent wall switch with two 10/100MbE ports and BeamFlex+ | 802.11ac Wave2 dual-concurrent wall plate with built-in DOCSIS 3.0 cable modem | Mobile Indoor 802.11ac Wave 2 2x2:2 Wi-Fi AP with LTE Backhaul |
Maximum PHY rate | 867 Mbps (5GHz) 300 Mbps (2.4GHz) | 867 Mbps (5GHz) 150 Mbps (2.4GHz) | 867 Mbps (5GHz) 300 Mbps (2.4GHz) | 867 Mbps (5GHz) 300 Mbps (2.4GHz) |
Wi-Fi technology | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) |
Concurrent users | 100 | 100 | 100 | 512 |
Radio chains:streams |
2x2:2 | 5GHz: 2x2:2 MU MIMO 2.4GHz: 1x1:1 SU-MIMO |
2X2:2 |
2x2:2 |
Antenna patterns (per band) | 4 | 4 | 4 | 64 |
Antenna gain | Up to 1dBi | Up to 3dBi | Up to 3dBi | Up to 3dBi |
PD-MRC | ||||
Rx sensitivity (2.4/5GHz) | -99/-96dBm | -99/-96dBm | -96/-95dBm | -101/-95dBm |
ChannelFly | ||||
SmartMesh | — | (in future release) | ||
USB (IoT Ready) | — | |||
Ethernet ports |
5 x 1GbE | 2 x 10/100MbE 1 x 1GbE |
2 x 10/100MbE |
2 x 1GbE ports, RJ-45 |
Integrated BLE/ZigBee | — | — | — | — |
WLAN Control and Management | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed | · SmartZone · Unleashed |
