Busy outdoor campuses and public spaces can have the most demanding wireless requirements. Somehow you need to provide the same top-tier capacity and performance as a crowded convention center floor, but packaged in a way that can stand up to the rigors of outdoor deployments.

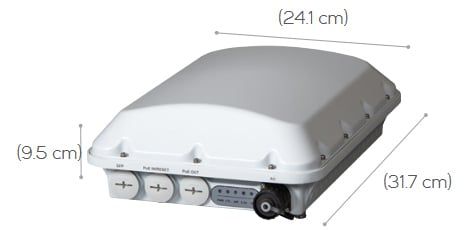

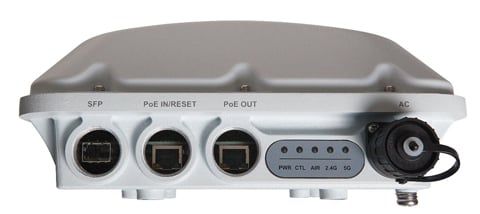

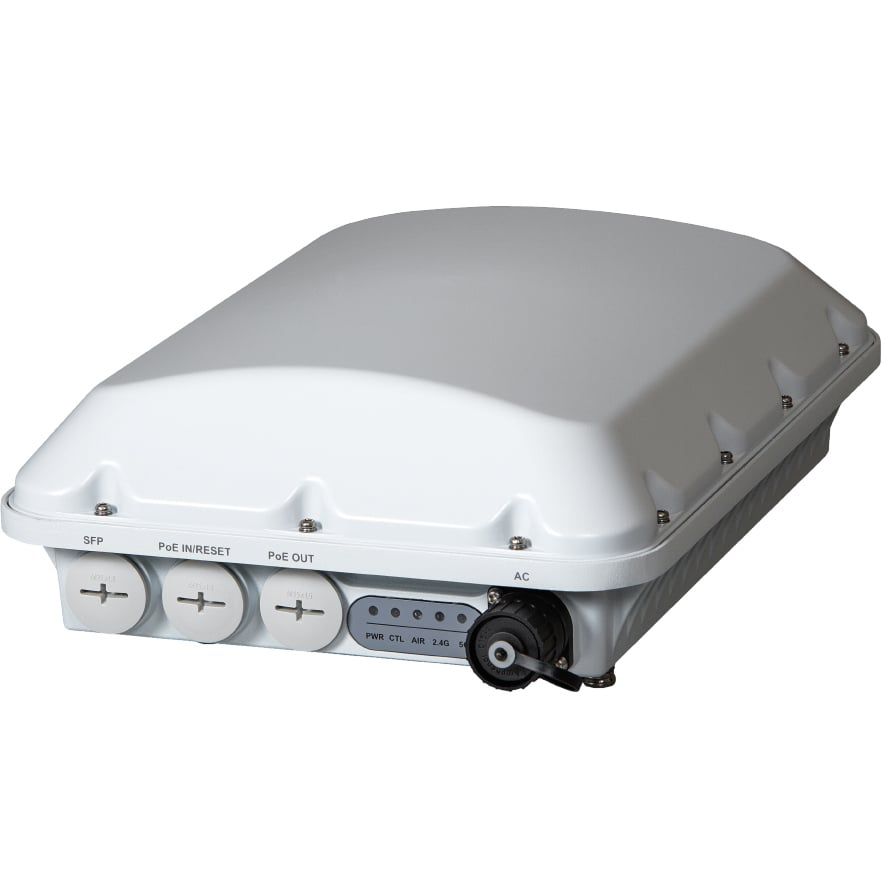

Designed for the highest-density outdoor venues, the RUCKUS T710 access point delivers RUCKUS’ premier Wi-Fi technology in an ultra-lightweight, industrial-grade (IP 67-rated) enclosure. It features patented RUCKUS technologies to extend range, mitigate interference, and deliver blazing fast performance—up to 1733Mbps data rate, the highest available for 4 stream MIMO Wi-Fi clients.
Bring industry-leading performance, reliability, and coverage to the most crowded outdoor spaces.
Specifications:
| |||||||
|---|---|---|---|---|---|---|---|
|  |  |  |  |  |  |  |
Feature/Description | High-end Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+ | High-end 802.11ac Wave 2 dual concurrent AP with BeamFlex+ | Mid-range 802.11ac Wave 2 dual concurrent AP with BeamFlex+ | Entry-level 802.11ac Wave 2 outdoor AP series with integrated BeamFlex+ omni and sector antennas | Outdoor 4x4:4 2.4/5GHz 802.11ac Wave 2 Wi-Fi access point with DOCSIS 3.1 backhaul | Embedded 802.11ac Outdoor Wave 2 Wi- Fi AP with External BeamFlex+ Antennas | Point-to-Point / Multi- point bridge |
Maximum PHY rate | 2400 Mbps (5GHz) 1148 Mbps (2.4GHz) | 1733 Mbps (5GHz) 600 Mbps (2.4GHz) | 1733 Mbps (5GHz) 600 Mbps (2.4GHz) | 867 Mbps (5GHz) 300 Mbps (2.4GHz) | 1733 Mbps (5GHz) 600 Mbps (2.4GHz) | 867 Mbps (5GHz) 300 Mbps (2.4GHz) |
867 Mbps (5GHz) |
Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) |
Concurrent users | 1024 | 512 | 512 | 512 | 512 | 512 | — |
Radio chains:streams | 4x4:4 | 4x4:4 | 4x4:4 | 2x2:2 | 4x4:4 | 2x2:2 | 2x2:2 |
Antenna patterns (per band) |
4,000+ |
4,000+ |
4,000+ |
64 |
4,000+ |
64 |
— |
Antenna gain |
Up to 3dBi |
Omni: Up to 3dBi Sector: Up to 8dBi |
Omni: Up to 3dBi 120 Sector: Up to 8dBi | Omni: Up to 3dBi 120 Sector: Up to 9dBi 30 Sector: Up to 12dBi |
Up to 3dBi |
Up to 3dBi |
— |
PD-MRC | |||||||
Rx sensitivity (2.4/5GHz) |
-103dBm |
-104/-104dBm |
-104dBm |
-101dBm |
-98/-97 |
-101dBm |
-96dBm |
ChannelFly | |||||||
SmartMesh | — | ||||||
Ethernet interface | 1 x 1 GbE 1 x 2.5 GbE |
2 x 1GbE |
2 x 1GbE |
1 x 1GbE |
1 x 1GbE |
1 x 1GbE |
1 x 1GbES |
USB (IoT Ready) | — | Models d, s, & n | — | ||||
Fiber interface | — | — | — | — | |||
GPS | — | — | — | — | |||
WLAN Control and Management | · ZoneDirector · SmartZone · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · SmartZone | · SmartZone · ZoneDirector · Standalone · Unleashed · RUCKUS Cloud | · Unleashed Multi-Site Manager |
General Specifications
| Antenna Gain | Omni -Up to 3 dBi | Sector -Up to 8 dBi |
| Antenna Patterns, per band | 4000+ |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 512 |
| Controller Support | Cloud Wi-Fi | SmartZone | Standalone | Unleashed | ZoneDirector |
| Ethernet Ports | 2 x 1GbE |
| Fiber Interface | Yes |
| IoT Ready | No |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 600 Mb/s |
| PHY Rate at 5 GHz, maximum | 1733 Mb/s |
| Radio Chains:Streams | 4x4:4 |
| Rx Sensitivity at 2.4 GHz | -104 dBm |
| Rx Sensitivity at 5 GHz | -104 dBm |
| SmartMesh | Yes |
| Venue Type | Hospitality | Transportation |
| Venue Sub-Type | Outdoor Resort Spaces | Transit Stations |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2 |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11n |
| Wi-Fi Interface Standard at 5 GHz | 802.11ac |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
