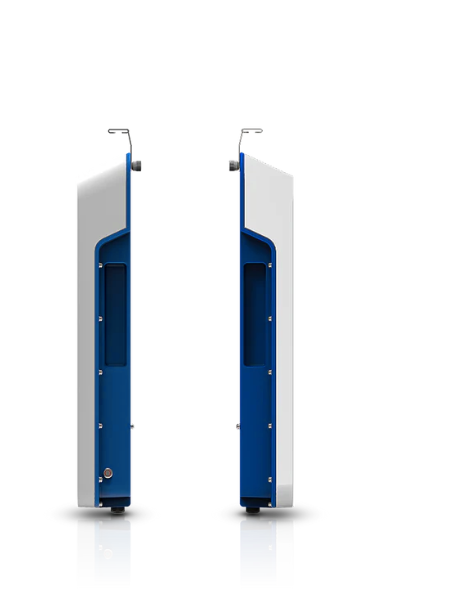

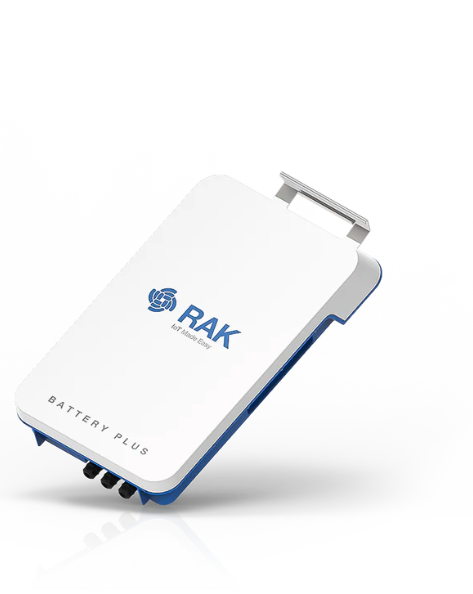

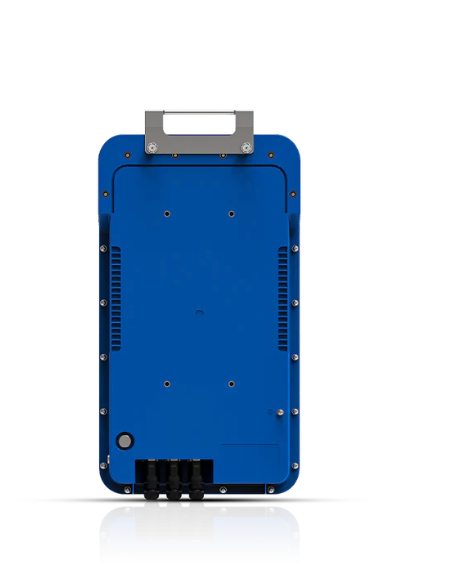

Battery Plus The Solar Battery Kit

Product Description
Battery Plus is the RAK's latest battery system incorporating a solar charging system and status monitoring. It is specially developed for the WisGate Edge Pro gateways. It will allow reliable outdoor deployment of the gateway in remote off-grid scenarios where the power is unreliable or inaccessible. Not only your gateway will be powered 24/7 with the solar panel option, but you will get all the battery data and status in the WisGateOS’ Web UI locally, and in the WisDM remotely.

With its 50Ah battery, your gateway can run for more than 2 days without sun.

The parameters of recommended single solar panel：

• Peak power Pm(W) ：80W
• Open circuit voltage Voc(V) ：about 21V
• Max. power voltage Vmp(V)：about 18V
• Max. power current Imp(A) ：about 4.44A
• Max. number of solar panels supported ：2 PCS

Features

• Long Life Span - The Lithium Iron Phosphate battery can be expected to remain serviceable for more than 10 years, considering that it is charged and discharged once a day at room temperature (25 °C).
• Integrated Heating Function - The battery integrates a solar charger and heater, it can be connected to PV panels directly and charged under 0 °C.
• Lightweight Design - The weight of RAK9155 is no more than 8 kg making installation by a single person easier.
• High Waterproof Grade - With IP65 rating of the enclosure, RAK9155 is suitable for both indoor and outdoor environments.

Package Inclusion

• 1pc Solar Battery
• 3pc Power Cable
• 1pc Mounting Kit
• 3pc Cable trap-Screw Mount
• 1pc Carry equipment
