WisNode Sense Home

Product Description

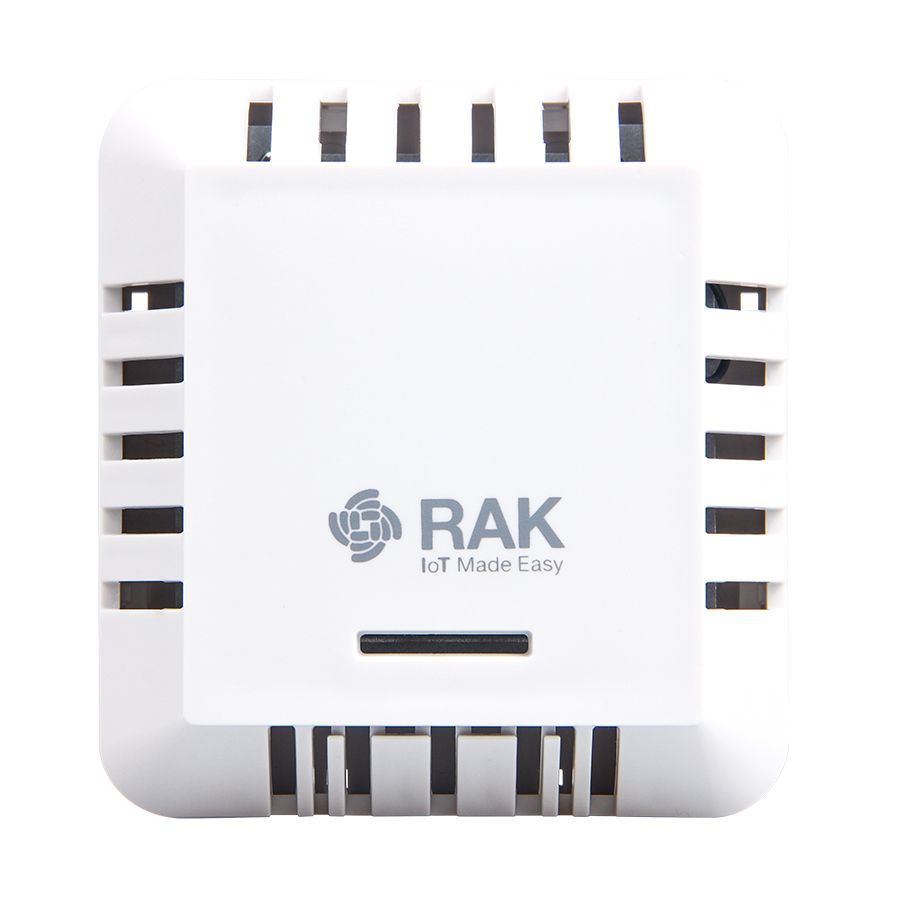

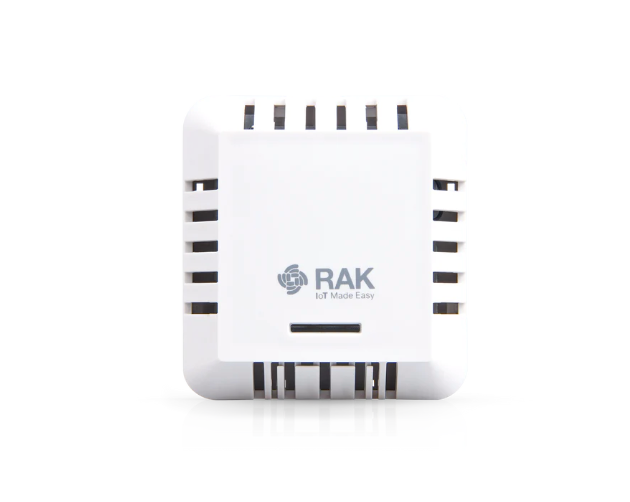

The WIsNode Sense Home (RAK7204) is an LPWAN node that serves as an environmental monitoring station. The high-precision sensors, can measure changes in temperature, humidity, gas pressure, and provide an indoor air quality index.
All the accumulated data can be sent to a LoRaWAN® gateway in order for it to be forwarded to the Cloud.
Because of its design, WisNode Sense Home can achieve a very low power consumption rate, which with the included non-rechargeable battery allows for 2+ years of operation.
The firmware has built-in functionality that allows the user to adjust the sampling interval of the sensors and the transmission cycle.

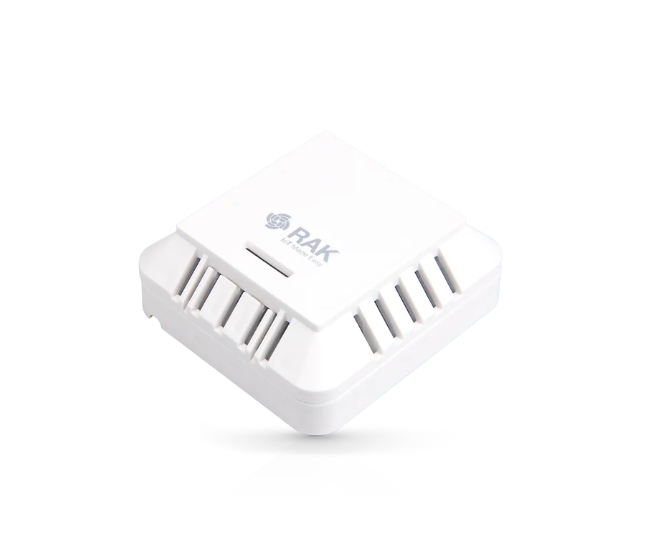

Last but not least, WisNode Sense Home adopts a highly integrated design, fitting the electronics and battery within 90mm x 85mm x 34mm casing.
Key Features

• Measurement of a variety of environmental parameters
• Temperature, Humidity, and Pressure
• Sensor
• BOSCH BME680 Integrated Environmental Unit
• Compact size
• Built-in LoRa® Antenna, swappable battery

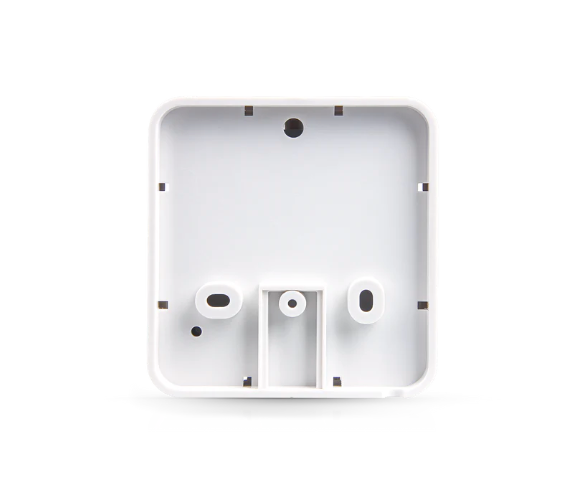

• Easy to mount and maintain
• Low power operation
• Standby current of less than 15 uA
• Adjustable sampling and transmission interval
• Battery
• Replaceable 3500 mAh high capacity lithium battery with a battery life of more than 2 years
• LoRaWAN® 1.0.2 fully compliant

Specification

Working Temperature

• Operating Temperature: -40ºC +25ºC +85ºC
• Storage Temperature: -40ºC +25ºC +85ºC

Power Consumption

• Standby Current: <15 uA
• Current in Sensors Working Mode: <10 mA
• Current in LoRa® Transmission Mode: <150 mA

Temperature Sensor Specifications

• Temperature Range: -40ºC +25ºC +85ºC
• Accuracy: 0.5ºC
• Output Resolution: 0.01ºC

Humidity Sensor Specifications

• Humidity Range: 0% r.H ~ 100 % r.H.
• Accuracy: +-3% r.H.
• Output Resolution: 0.008% r.H.

Gas Pressure Sensor Specifications

• Range 300: hPa ~ 300 hPa
• Accuracy: +-0.6 hPa
• Output Resolution: 0.18 Pa.

IAQ Sensor Specifications

• IAQ Range: 0 ~ 500
• Accuracy: 15
• Output Resolution: 1

Power Supply Battery Specifications

• Nominal Battery Voltage: 3.6V
• Battery Specification: ER18505
• Nominal Capacity: 3500mAh
• Temperature Range: -55ºC ~ 85ºC
• Battery Dimensions: 18mm ~ 50.5mm
