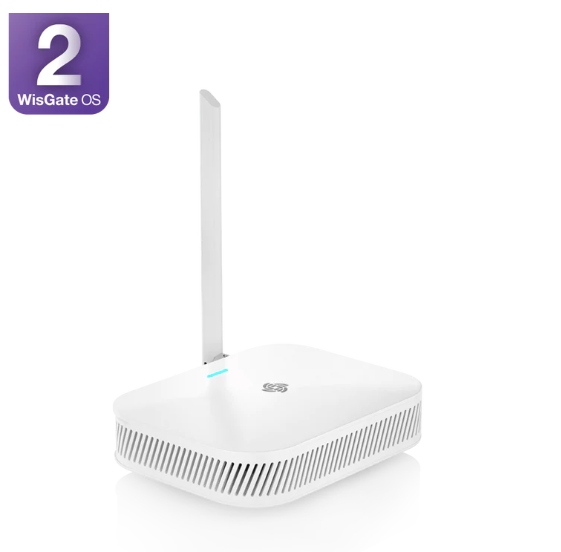

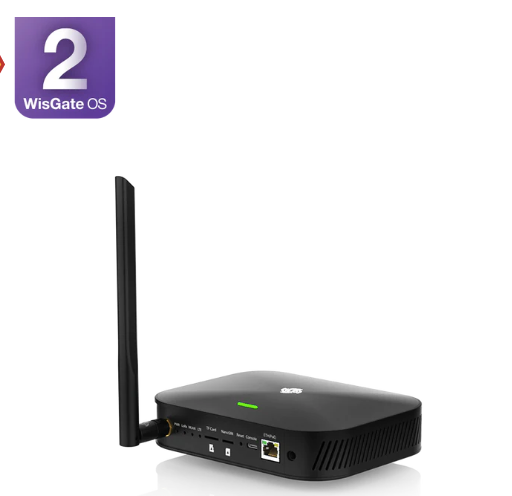

WisGate Edge Lite 2

Product Description

WisGate Edge Lite 2 version 2 (RAK7268V2/RAK7268CV2) is the newest RAK indoor gateway for LoRaWAN from the WisGate Edge series.

It comes with the newest WisGateOS 2 which provides all the existing features but adds many options, and tooltips. It comes with extension add-ons – an option to add and manage additional features catering to your need.

WisGate Edge Lite 2 version 2 is an ideal product for IoT commercial deployments. With its industrial-grade components, it achieves a high standard of reliability.

The gateway supports 8 LoRa channels, multi backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Breathing light LED that helps to identify the working status visually.

This product provides a solid out-of-the-box experience for quick deployment.

The RAK7268V2/RAK7268CV2 is suited for any use case scenario, be it rapid deployment or customization regarding UI and functionality.

It is an ideal product for Smart Buildings, Smart offices, Smart factories, and many more.

Read about the WisGateOS 2.

Product Features

• Hardware
• 8 LoRa channels
• Supports 2.4 GHz Wi-Fi AP for configuration
• 100M Base-T Ethernet with PoE
• 12V DC power supply
• RP-SMA LoRa antenna connector
• Multi back-haul with Ethernet, Wi-Fi, Cellular(RAK7268CV2)
• SD card for log backup and LoRa frame buffering (in case of backhaul failover)
• LTE Cat 4 network (optional)

Software

• WisGateOS 2
• Extension add-ons
• Built-in Network Server
• LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for the Built-in server is coming soon)
• LoRa Frame filtering (node whitelisting)
• MQTT v3.1 Bridging with TLS encryption
• Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)

Package Inclusions

• 1pc Gateway
• 1pc LoRa antenna
• 1pc Power supply
• 1pc mounting bracket
