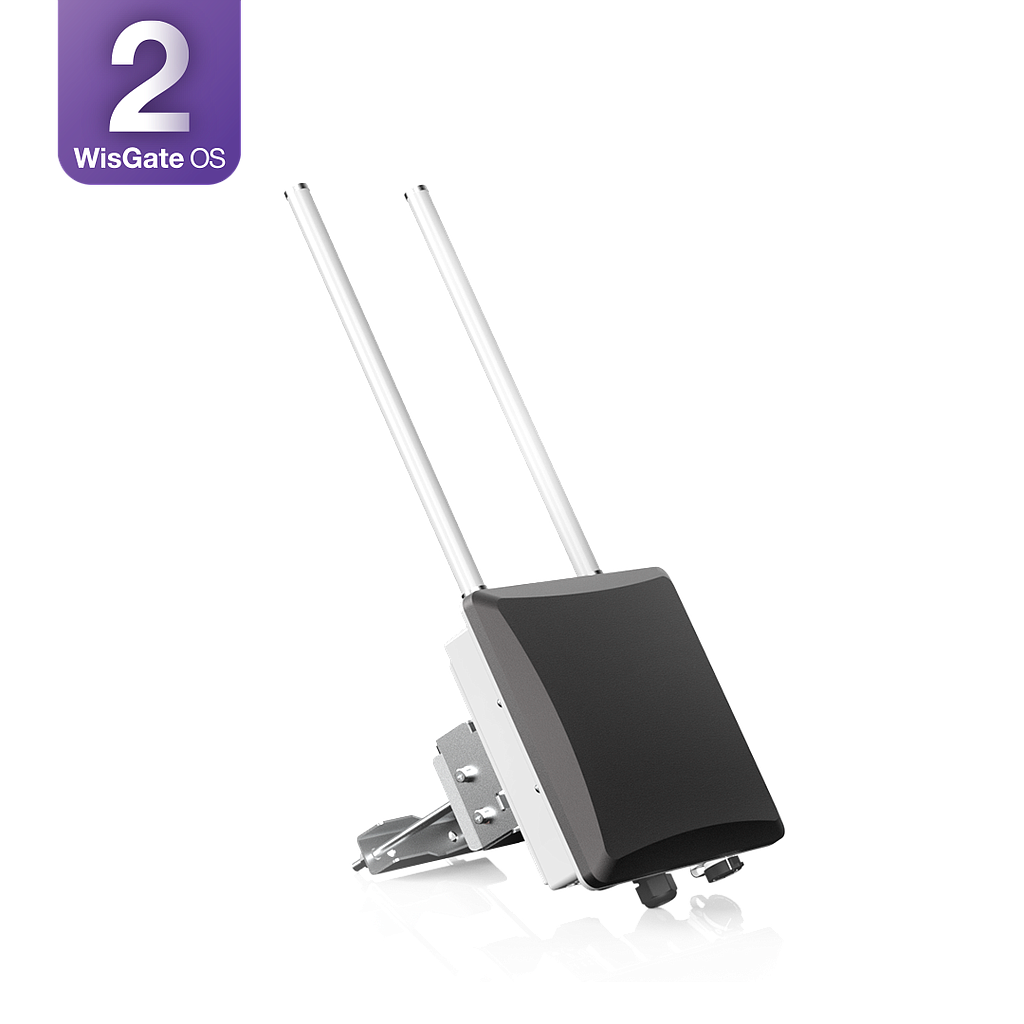

RAK WisGate Edge Pro

Product Description
WisGate Edge Pro version 2 (RAK7289V2/RAK7289CV2) is the newest RAK gateway for LoRaWAN from the WisGate Edge series.

It comes with the newest WisGateOS 2 which provides all the existing features but adds a new design, many options, and tooltips. It comes with extension add-ons – an option to add and manage additional features catering to your need.

WisGate Edge Pro version 2 is an ideal product for IoT commercial deployments. With its industrial-grade components, it achieves a high standard of reliability.

The gateway supports up to 16 LoRa channels, multi backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options and full integration with RAK Battery Plus off-grid power solution. The gateway’s new enclosure design allows the LTE, Wi-Fi, and GPS antennas to be inside the enclosure.

This product provides a solid out-of-the-box experience for quick deployment.

The RAK7289V2/RAK7289CV2 is suited for any use case scenario, be it rapid deployment or customization regarding UI and functionality.

Product Features
Hardware

• IP67/NEMA-6 industrial-grade enclosure with cable glands
• PoE (802.3af) + Surge Protection
• Dual LoRa Concentrators for up to 16 channels
• Backhaul: Wi-Fi, LTE and Ethernet
• GPS
• Supports DC 12V or Battery Plus off-grid system
• Internal antenna for Wi-Fi, GPS, and LTE, External antenna for LoRa
• Dying gasp (optional)
• Software
• WisGateOS 2
• Extension add-ons
• Built-in Network Server
• LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for the Built-in server is coming soon)
• LoRa Frame filtering (node whitelisting)
• MQTT v3.1 Bridging with TLS encryption
• Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
• Full duplex (optional)
• Listen Before Talk (optional)
• Fine timestamping (optional)

Package Inclusion

• 8 Channel with and without LTE
• 1pc Gateway
• 1pc Ethernet Gable Gland
• 1pc POE Injector
• 1pc Mounting Brackets
• 1set Screws
• 16 Channel with and without LTE
• 1pc Gateway
• 1pc Ethernet Gable Gland
• 1pc POE Injector
• 1pc Mounting Brackets
• 1set Screws
