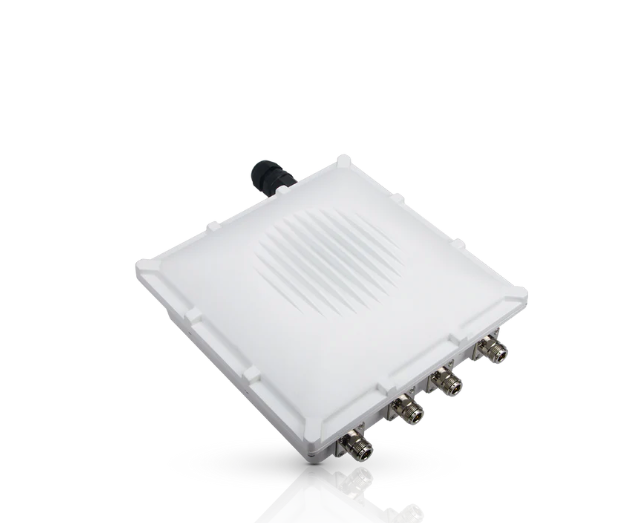

WisGate Edge Max

Product Notice

 The 8 dBi antenna is too long to be attached directly to your gateway. To avoid damaging your gateway connector especially in the windy season, we recommend using a Feeder line cable and secure the antenna with brackets.
 The 8dBi antenna for LoRa is not available for EU433 and CN470 ban
The RAK7249 now excludes the RAK antennas from the product bundles. You can choose to opt-in and include an antenna with your RAK7249 purchase by checking the corresponding product of your choice.
Product Description
WisGate Edge Max is an ideal product for IoT commercial deployment and is Class A and C compliant. Its modularity and customization options allow for flexibility when deploying a solution. With its industrial-grade components, it achieves a high standard of reliability.

The LoRa Gateway provides for a solid out-of-the-box experience for quick deployment. Additionally, since its software and UI sits on top of OpenWRT it is perfect for the development of custom applications (via the open SDK).

Thus WisGate Edge Max is suited for any use case scenario, be it rapid deployment or customization with regards to UI and functionality. Read More

Key Features

• Designed for outdoor use in harsh conditions
• Customizable package with respect to modules and functionality
• Multiple Backhaul connectivity and Power supply options
• Top of the line LoRa Range and low power consumption
• Hardware Specifications
• IP67/NEMA-6 industrial-grade enclosure with cable glands
• PoE + Surge Protection
• Dual LoRa® Concentrators for up to 16 channels
• Backhaul: Wi-Fi, LTE, and Ethernet
• Built-in GPS module
• Up to 5 hours of autonomous work on battery (Battery + Solar Kit optional)
• Operating temperature range: -30°C ~ +55°C

Software Specifications

• Built-in LoRa® Server
• OpenVPN
• Software and UI sit on top of OpenWRT
• LoRaWAN® 1.0.2
• LoRa® Frame filtering (node whitelisting)
• MQTT v3.1 Bridging with TLS encryption
• Buffering of LoRa® frames in case of NS outage (no data loss)

Packaging Details

• Product Dimensions: 220mm x 220mm x 104mm
• Weight: Approximately 5.5kg including the mounting kit
• Bundle Components

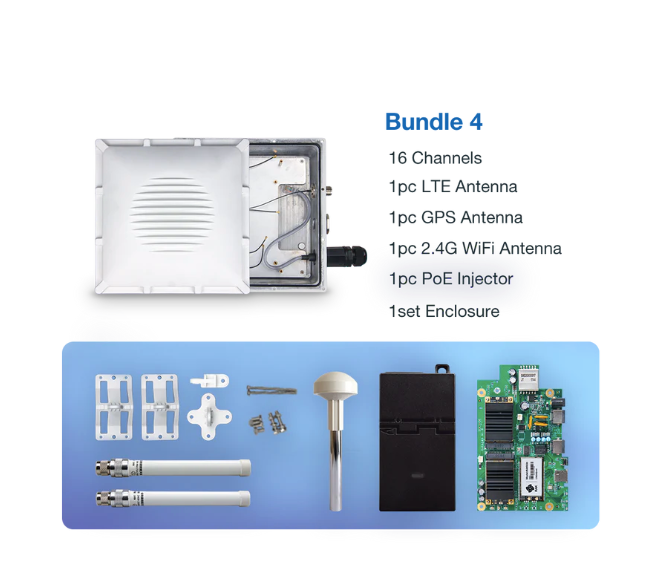

Bundle 4 (RAK7249-1x-14x)

• 16 Channels SX1301
• 1pc LTE Antenna
• 1pc GPS Antenna
• 1pc 2.4G WiFi Antenna
• 1set Enclosure
• 1pc PoE Injector with Power Cable
