Product Description

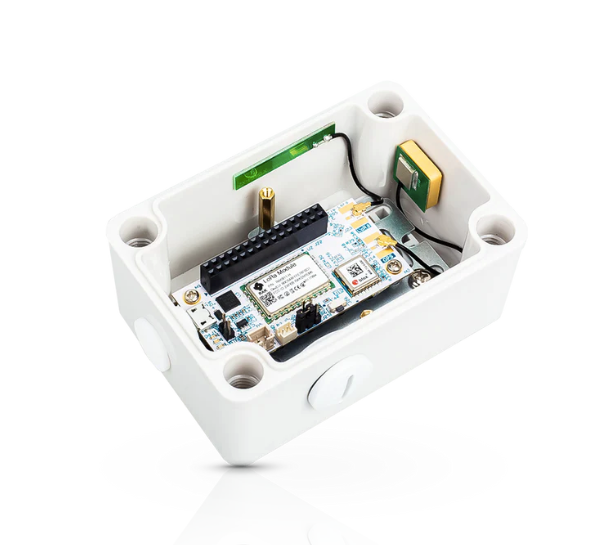

The WisNode Track D (RAK7205) LPWAN tracker board is built upon the RAK811. At its core is an STM32L1 microcontroller driving Semtech® SX1276/78 LoRa® chip.
GPS is present as well as a number of sensors. The aforementioned makes the board suitable for rapid application development, such as asset tracking, vehicle management, location-based services, environmental monitoring, etc. Additionally, because of its low power consumption in sleep mode, it can provide a long-lasting solution for any battery-powered project.
The support for AT commands makes configuration a breeze. For advanced users is open source support in case a custom firmware is required.
Complete documentation of this product can be found on our website documentation page.
Key Features
- RAK811 (STM32 MCU + SX1276/78)
- GPS + Accelerometer
- Bosch BME680 Environmental unit
- Battery + Solar Power Included with the box

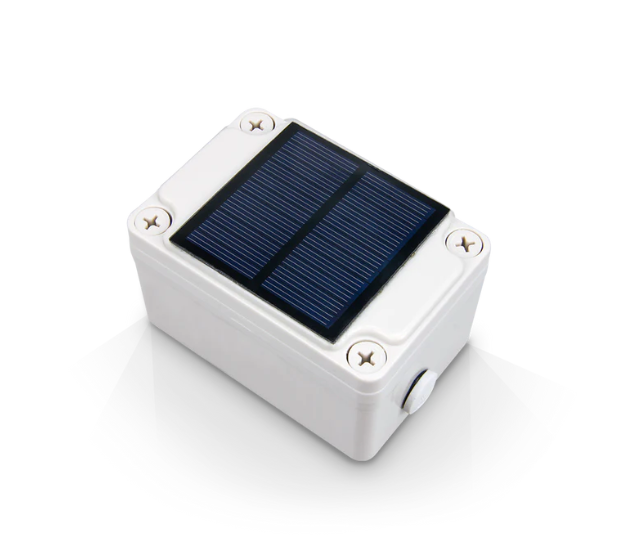

- IP67 Environmentally protected casing
- Packaging
- Product Dimensions: 150mm x 90mm x 90mm
Package Inclusions:
- RAK5205 board
- GPS antenna (installed)
- SubG antenna (installed)
- Jumpers
- DuPont lines
- Micro USB cable
- 3200mAh Li Battery
- Case, screws, and mounting brackets
